LoCI's real-time data and control system provides landfill gas collection system operators the data to improve operations, increase methane capture, and reduce landfill gas emissions.



LoCI's patented cloud-connected system is comprised of:

WellWatcher

WellWatcher®

LoCI’s real-time data platform, offering our customers unparalleled visibility and tools to optimize the gas collection process.
Learn More
Controller

Controller

Wellhead-mounted device that captures data and enables measurement and control at each gas collection point.
Learn More
Mounted LoCI Sentry measurement device

Sentry

Header-mounted aggregate gas composition measurement device for the overall landfill gas collection system.
Learn More

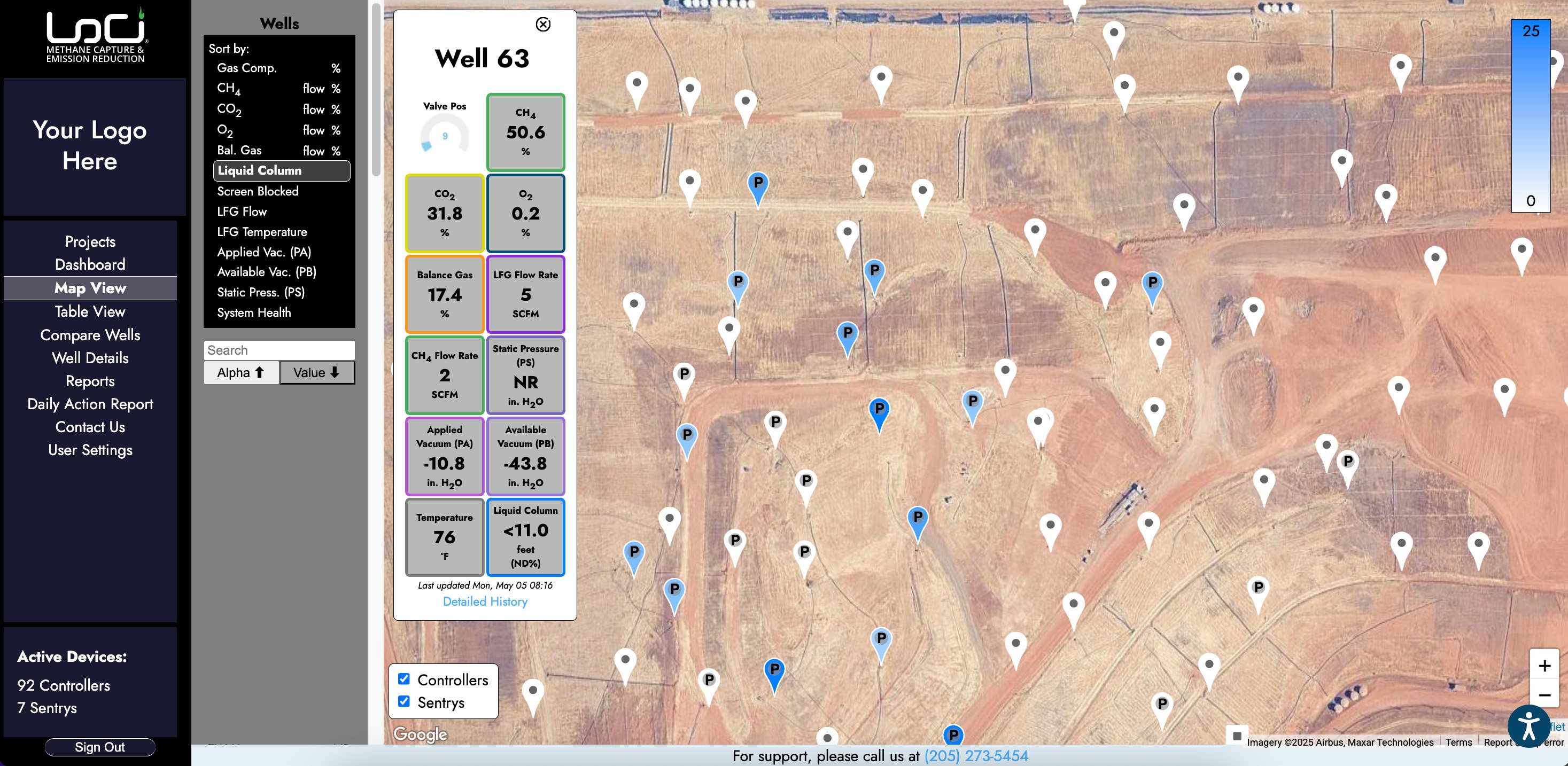

Liquid Level Measurement Map View

Liquid Level Measurement

Measurement and alerting device to improve liquid management and removal from collection wells.
Learn More

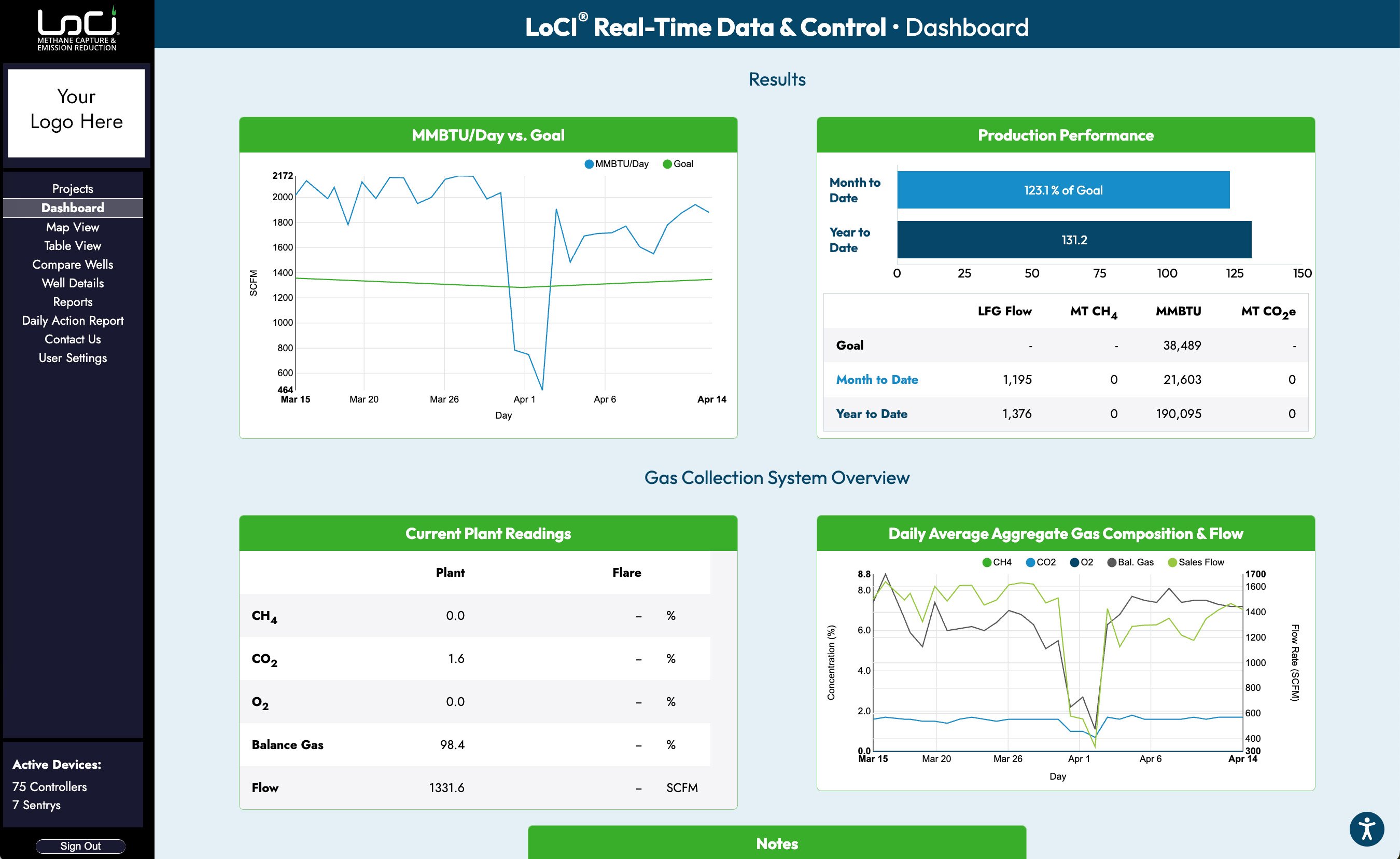

WellWatcher®

At the heart of the LoCI system is the WellWatcher® analytics and control platform: a cloud-connected user interface that provides landfill gas collection system operators 24/7/365 real-time visibility into the entire gas collection system — increasing methane collection system efficiency, improving productivity, and reducing harmful emissions.

Features

  • Graphical user interface allows real-time gas collection system accessibility and control 24/7/365 via desktop, laptop, or tablet
  • Map view or table view with exportable data for both individual wells and aggregate gas collection system data
  • Operator-configured automation and alert thresholds on a system-wide and individual collection well basis
  • Monthly gas collection system reporting
  • All landfill gas collection system data is secured using TLS encryption and certificate-based host authentication

Controller

The LoCI Controller increases gas collection system efficiency, improves productivity, and reduces environmental, health, and safety risks. Controller measurement devices are recommended for all active collection wells in the landfill gas collection system.

Features

  • Measures landfill gas composition, including methane, oxygen, carbon dioxide, and calculated balance gas, along with temperature/ambient temperature and barometric pressure
  • Measures flow at each collection well using patented Venturi Flo-Wing®
  • Measures pressure applied to the collection well and available system vacuum pressure in the vacuum riser
  • Data displayed in real time on the WellWatcher® platform
  • Automated control based on LoCI's algorithms, the landfill collection system operator’s set points, or via "remote manual" valve adjustments
  • Automated, precision-controlled ball valve that regulates flow at each well
  • Actuated ball valves available in 2", 3", or 4" sizes

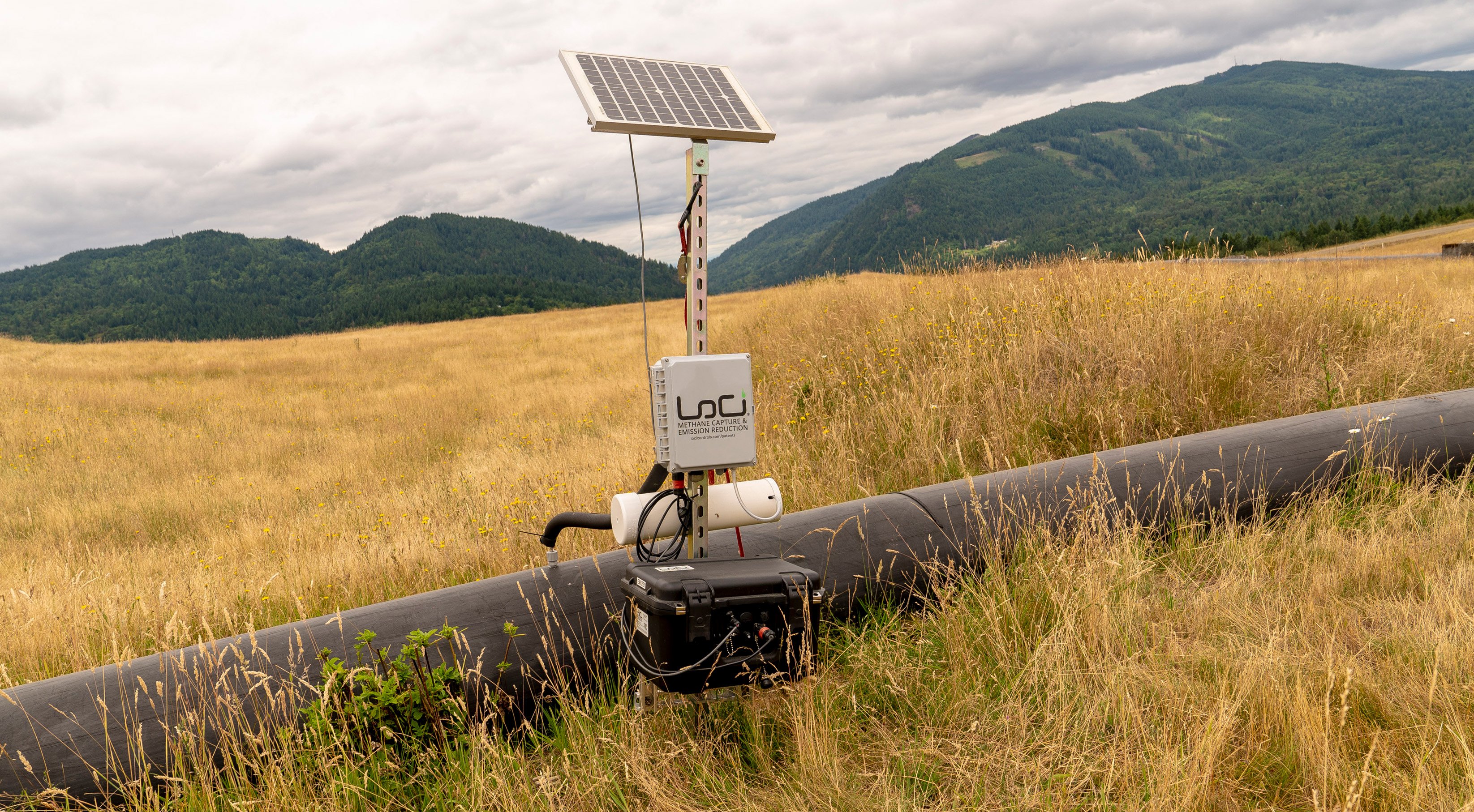

Sentry

Used in conjunction with LoCI's Controller, the Sentry monitors gas composition at headers or at the inlet to the plant to provide aggregate or sectional data for gas collection system oversight. The data from a flow meter in a header — or at the aggregate gas collection point — can be integrated into the Sentry device.

Installation of the LoCI Sentry is recommended to integrate plant-level aggregate gas quality into the LoCI Control system. Sentrys should be used at gas collection system header lines to provide regional monitoring, analysis, and troubleshooting.

Features

  • Measures landfill gas composition in header, including methane, oxygen, carbon dioxide, calculated balance gas
  • Measures header temperature and pressure
  • Can connect to an external customer-supplied flow meter
  • Data displayed in real time on the WellWatcher® platform

Liquid Level Measurement

Liquid levels inside individual collection wells in a landfill gas collection system can significantly impact overall efficiency. Proper control and measurement of liquid levels ensure that a sufficient length of perforated wellbore is exposed, allowing for more effective gas collection.

LoCI Controls can integrate liquid level measurement to improve landfill gas operations, reduce field response times, and establish more efficient downhole pump maintenance.

Features

  • Integrated, airtight device measures liquid levels inside wellbore within ±1 foot accuracy
  • Text or email alerts notify on-site personnel when liquid levels exceed thresholds
  • Standard well caps can be used with LoCI's Liquid Level Measurement system

LoCI System-Field Rep
A LoCI Controls Field Service Representative performs maintenance on a Controller measurement device.
